FSD-TY008
TY008IS AN ELECTRO HYDRAULIC TYRE CHANGER FOR TRUCK、BUS AND
TRACTORS; EQUIPMENT WITH A SOUNDPROOFED POWER GENERATOR;
TY008CAN BE RUN ON THE WORKSHOP AND SUITABLE FOR MOBILE SERVICE.
● TECHNICAL DATA
Rim capacity 14"-26"
Max.wheel diameter 1300mm
Max.wheel width 600mm
Max.wheel weight 700kg
Bead breaker force 2500kg
Gear box motor 1.1kW
Hydraulic unit motor 1.1kW
Power supply 220/400V 1/3Ph 50/60Hz (Optional)
Gross weight 580kg
Outside dimension (L×W×H) 150×1000×1550mm

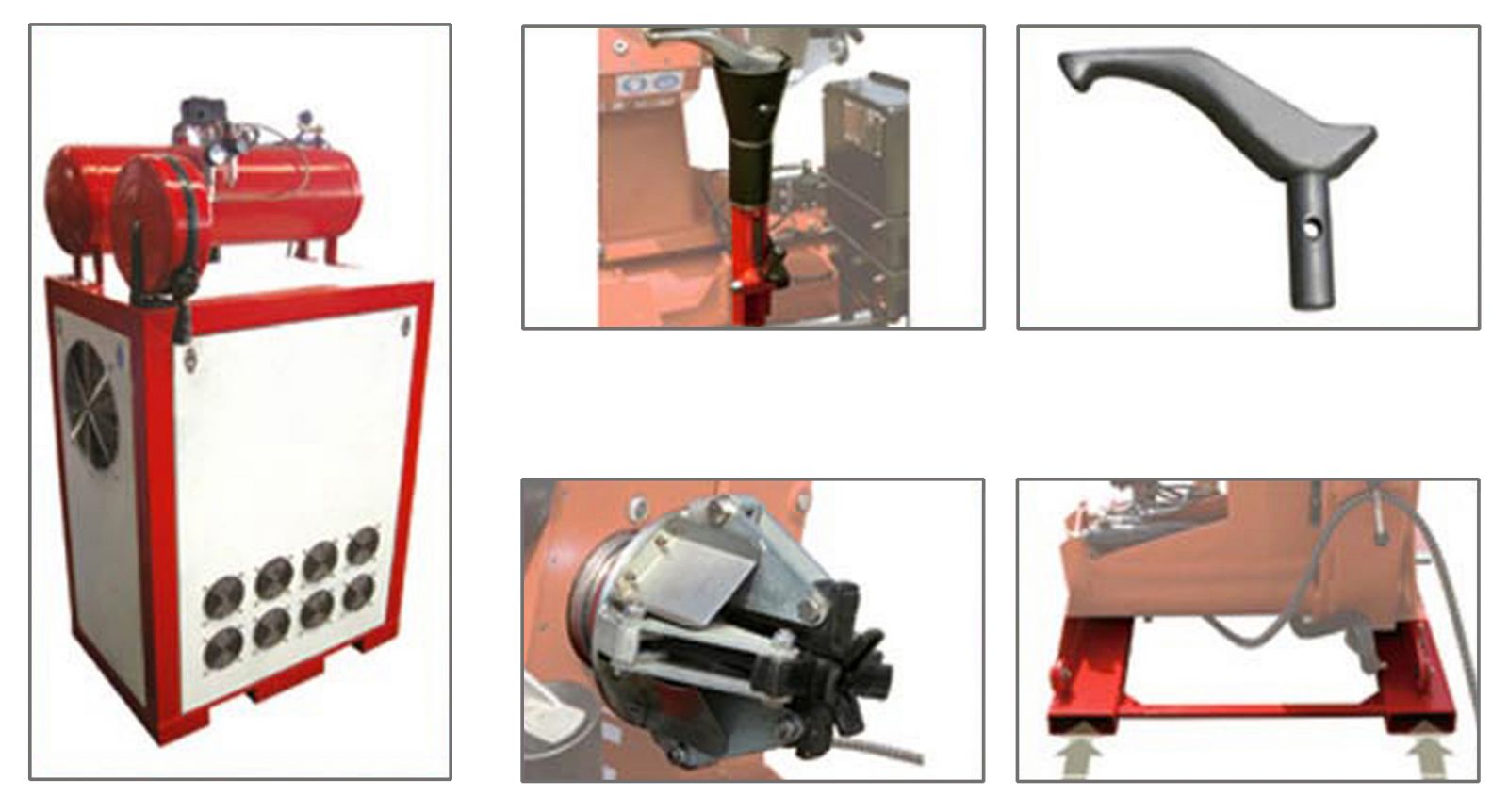

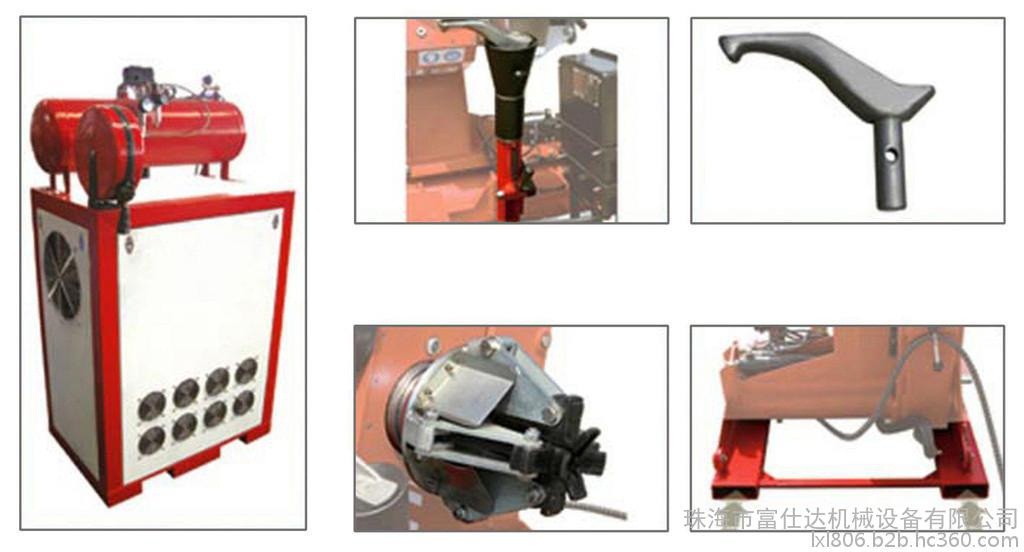

● OPTIONAL ACCESSORIES
● OPTIONAL ACCESSORIES
Alu Alloy Rims Protection Rings
● STANDARD ACCESSORIES
